75A Emerson DC Power Supply System Vertiv Netsure 531A41 With R48-2000e3 Rectifier Module

Name: 75A Emerson DC Power Supply System Vertiv Netsure 531A41 With R482000e3 Rectifier Module
Brand: Vertiv / Emerson
Price: 780.00 USD

China 75A Emerson DC Power Supply System Vertiv Netsure 531A41 With R48-2000e3 Rectifier Module factory

Place of Origin : Guangdong, China

Brand Name : Vertiv / Emerson

Model Number : Netsure 531 A41

Packaging Details : Cartons or Wooden Frame

Supply Ability : 2000 Piece/Pieces per Month

Price : $780.00/sets 1-9 sets

Output Power : 2kW-8kW

Output Type : Single

Input Voltage : 200VAC-250VAC

Output Voltage : 48V

Output Frequency : 50/60HZ

Output Current : 120A

Application : Telecom Equipment

Product Name : Vertiv Netsure 531 A41

Warranty : 12 Months

Peak Efficiency : Rectifier: 96.2%

output capacity : Rectifier: 2000W (max up to 4 units)

Load Circuit Breakers / Fuses : Circuit Breakers

System Type : subrack

Dimension(W*D*H) : 483 x 310 x 178mm

Weight : ≤25kg (exclude rectifier and controller)

Efficient Rectifier Module : R48-2000e3

Port : shenzhen

Contact Now

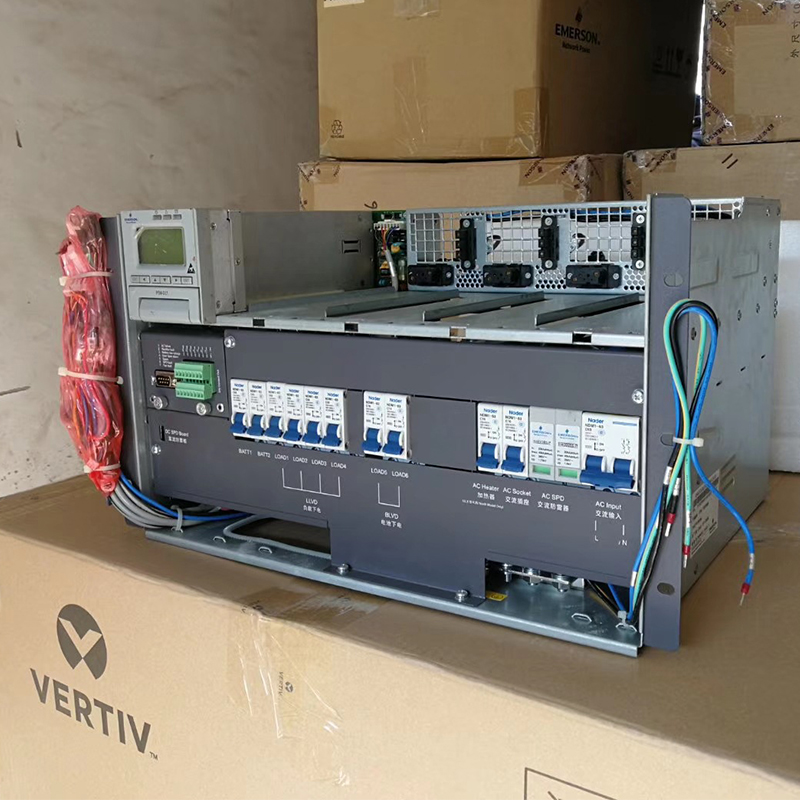

Original 75A Emerson Embedded DC Power Supply System Vertiv Netsure 531A41 with R48-2000e3 Rectifier Module

OEM & ODM Service

75A Emerson DC Power Supply System Vertiv Netsure 531A41 With R48-2000e3 Rectifier Module

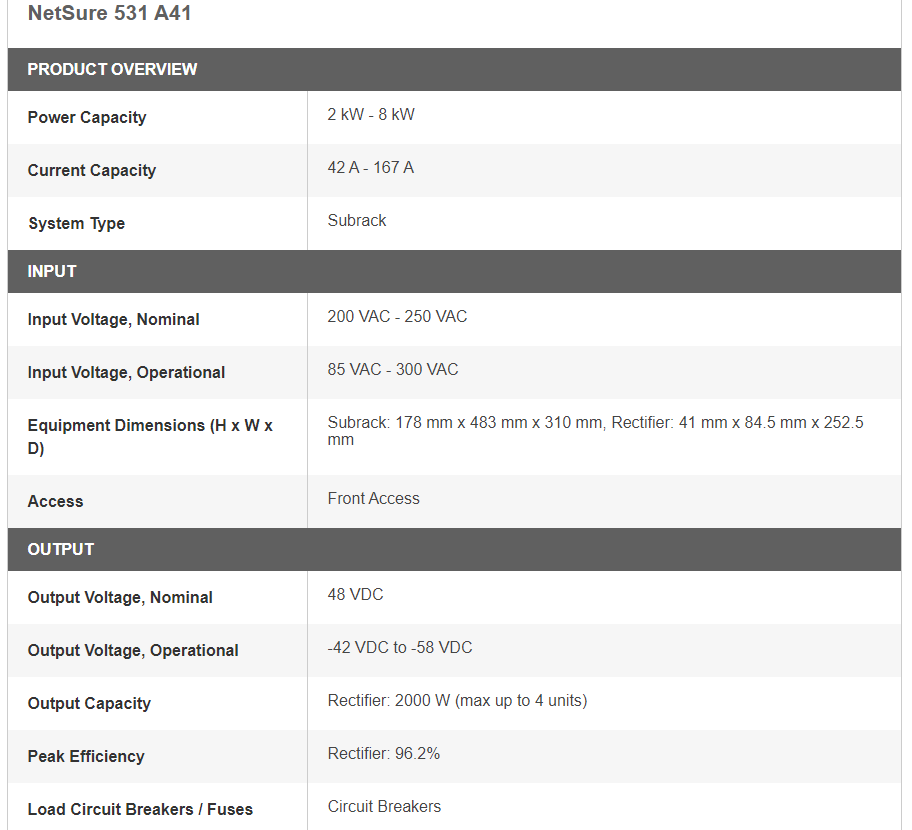

Specification

Place of Origin	Guangdong, China
Brand Name	Vertiv/Emerson
Model Number	Netsure 531 A41
Output Power	2kW to 8kW
System Capacity	8kW
Input Voltage	200VAC-277VAC
Rectififier	Max: 4 x R48-2000e3
Controller	M221S / M222S / M830B
Output Current	120A
Application	Telecom Equipment
Warranty	12 Months
Peak Efficiency	Rectifier: 96.2%
output capacity	Rectifier: 2000W (max up to 4 units)
Load Circuit Breakers / Fuses	Circuit Breakers
System Type	subrack
Dimension(WDH)	483 x 310 x 178mm
Weight	25 kg(without module)
Matching Rectifier Module	50A (R48-3000A3 or R48-3000e3)

Recommend Products

Product Description

Description:

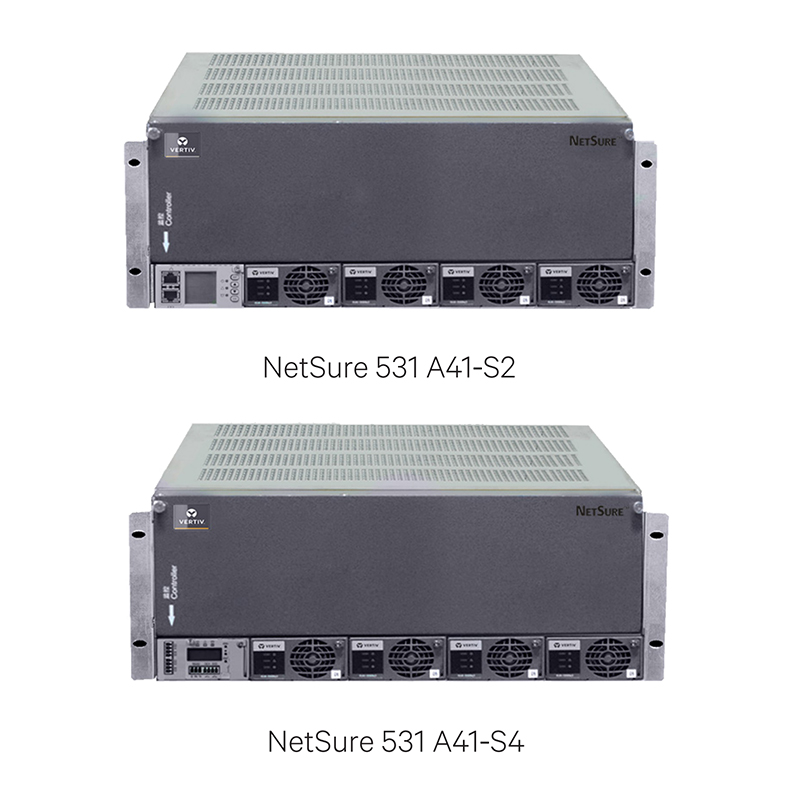

The Netsure 531 series from Vertiv is a fully-integrated DC power system consisting of a rectifier and controller that provides maximum efficiency for mobile communication applications such as LTE and FTTx deployments or macro stations. It is designed to meet the high-eơiciency demands of mobile applications, with high reliability, high power density, and fully digital features. The built-in high eơiciency R48-2000e3 rectifier also provides an ultra high eficiency of up to 96%, significantly improving the energy eơiciency.

Features:

1.Great savings in installation cost due to its small size and embedded installation.

2.Wide input voltage range (85Vac to 300Vac), strong ability in adapting power grid. 3.Rectifier working temperature range: -40°C +80°C (full load output if the range is -40°C +55°C, derating output if exceeding 55°C). 4.Perfect lightning protection at AC side, DC side and signal side. 5.Efficiency of rectifier is above 96%, efficiency of system is above 95%. 6.Battery management, which prolongs the working life of battery. 7.Provide multiple communication ports such as RS232, Ethernet port, dry contacts, etc, for flexible networking to achieve remote monitoring.
