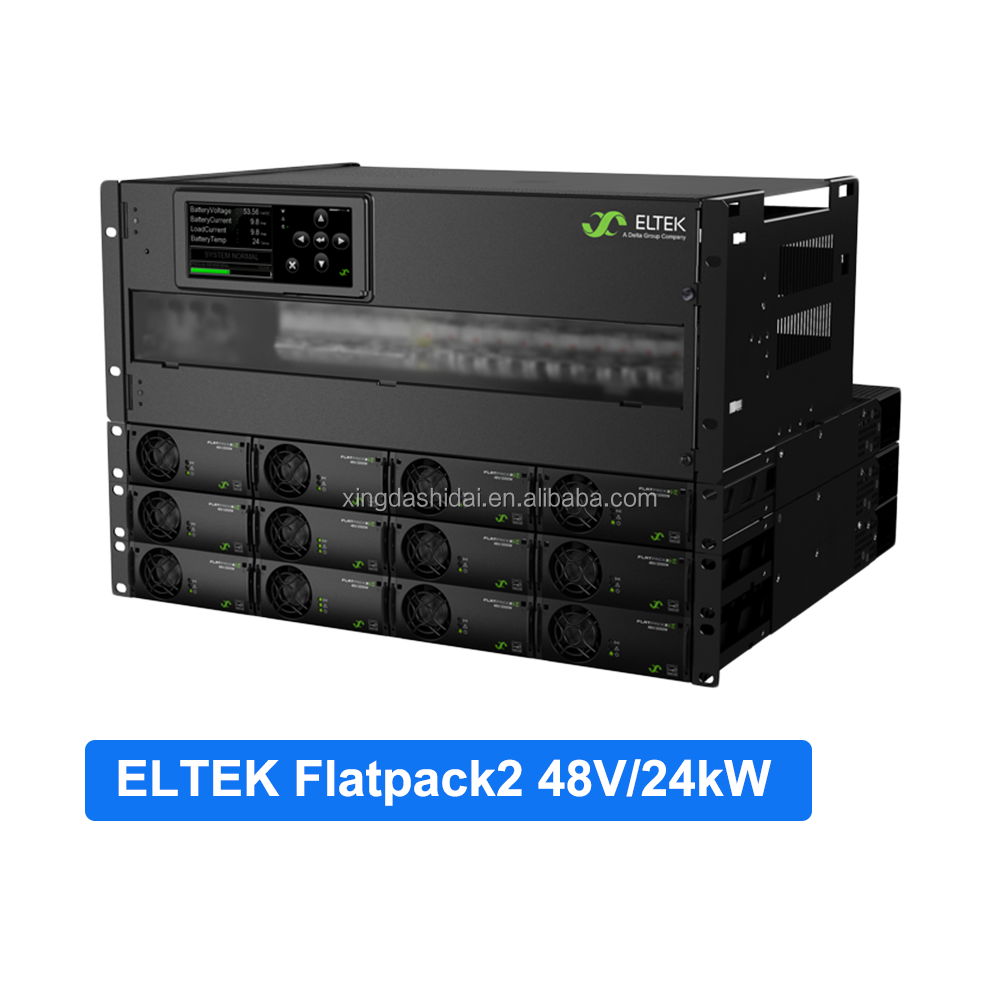

19inch 4U Telecom Hybrid System Eltek Flatpack2 48V/24KW With Integrated Rectifier

Name: 19inch 4U Telecom Hybrid System Eltek Flatpack2 48V24KW With Integrated Rectifier
Brand: ELTEK
Price: 1 USD

China 19inch 4U Telecom Hybrid System Eltek Flatpack2 48V/24KW With Integrated Rectifier factory

Place of Origin : Guangdong, China

Brand Name : ELTEK

Model Number : Eltek Flatpack2 48V/24kW

Packaging Details : Cartons or Wooden Frame

Supply Ability : 1500 Set/Sets per Month

Output Power : 24kw

Output Type : Multiple

Input Voltage : 100-305Vac

Output Voltage : 48V

Output Frequency : 50/65HZ

Output Current : 500A

Application : telecom equipment application

Warranty : 12 months

Name : Eltek Flatpack2 48V/24kW

Dimension(W*H*D) : 482 x 380 x 311mm

Weight : 6kg

Output : 48V

Operating temperature : -40 - 70 °C

Ingress Protection (IP) : IP43

Max input AC Voltage : 305 VAC

Mains configuration : 230VAC Single phase;230VAC 3 phase; 230/400VAC 3 phase (Y)

Port : shenzhen

Contact Now

Eltek 19inch 4U Height Distribution Flatpack2 48V/24KW Integrated Rectifier Embedded DC Power System

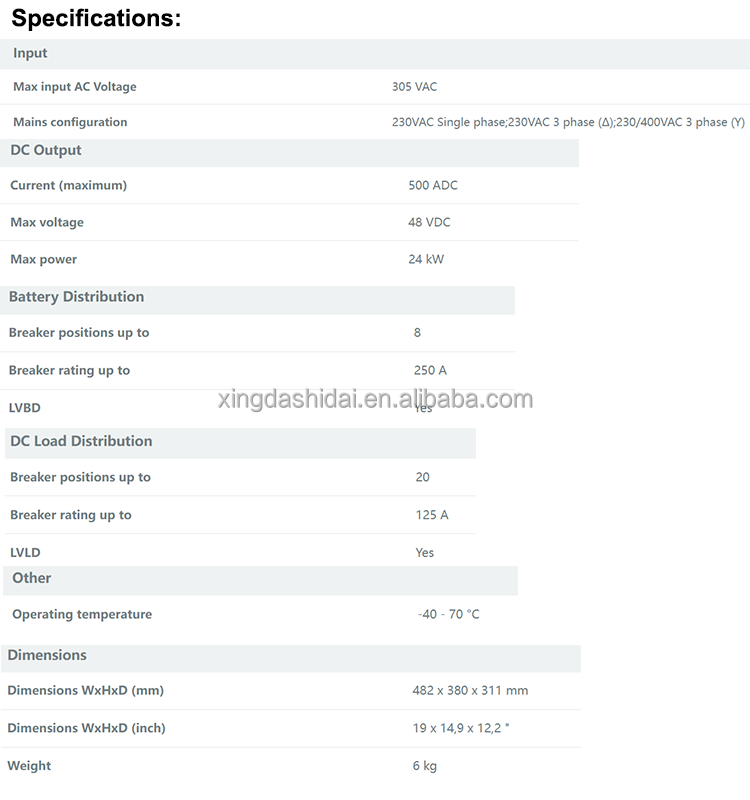

Specification

Place of Origin	Shenzhen, China
Brand Name	xdsd
Model Number	Eltek Flatpack2 48V/24kW
Output Power	24kw
Output Type	Multiple
Output Voltage	48V
Output Frequency	50/65HZ
Output Current	500A
Application	Telecom; Network
Warranty	12months
Name	Eltek Flatpack2 48V/24kw DC Power System
Dimension(WHD)	482 x 380 x 311mm / 19 x 14.9 x 12.2 inch
Weight	6kg
Output	48V
Operating temperature	-40 - 70 °C

Recommend Products

Product Description

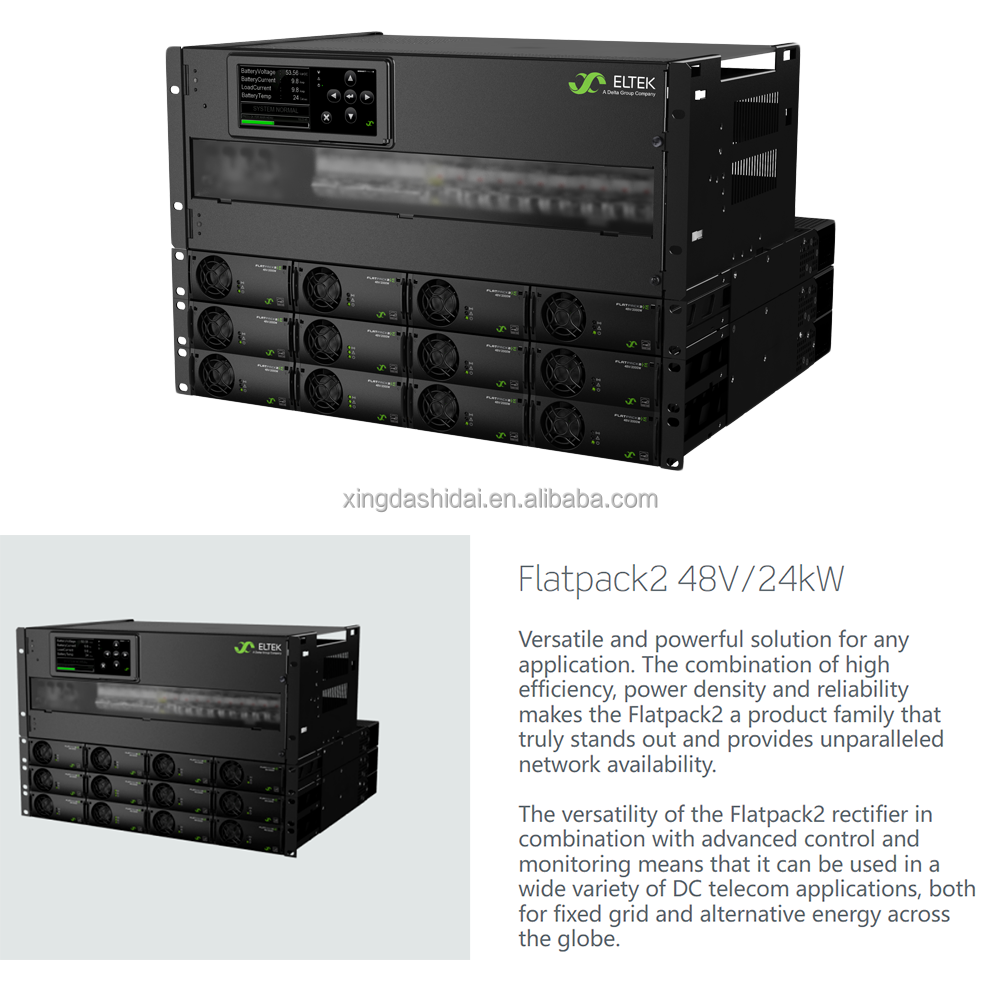

Flatpack2 48V/24kW:

ersatile and powerful solution for any application. The combination of high efficiency, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability.

The versatility of the Flatpack2 rectifier in combination with advanced control and monitoring means that it can be used in a wide variety of DC telecom applications, both for fixed grid and alternative energy across the globe.

The 4U distribution is designed to meet the demand for compact and flexible DC power solutions. It is based on building blocks and has a variety of configurations depending on power, controller, battery section and load section. Pluggable battery breakers and DIN mounted load breakers ensures easy configurability as well as “in field” replacement. The power system has two controller options, Smartpack2 or Smartpack S which both has all the functionality required in present and future applications.

19inch 4U Telecom Hybrid System Eltek Flatpack2 48V/24KW With Integrated Rectifier

Company Profile

Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.

The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.

We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.

We provide OEM / ODM services according to customers' specific needs.
