Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW

Product Categories
Shenzhen Xingda Shidai Technology Co., Ltd.
Contact Now

Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW

Place of Origin : Guangdong, China

Brand Name : Eltek

Model Number : Flatpack2 DC/DC 380V/54V Converter System

Packaging Details : Cartons or Wooden Frame

Supply Ability : 1000 Set/Sets per Month

Price : $899.00/sets 1-4 sets

Network : SDK

Customized support : Software reengineering

Type : DC/DC Converters

Output Type : Single

Output Current : 2160ADC (maximum)

Output Frequency : 45-66hz

Size : 600 x 2000 x 600mm

Weight : 36kg

Model : Flatpack2 DC/DC 380V/54V System

Warranty : 12 months

Part Number : CDT31242.xxx; CDT32442.xxx; CDT33642.xxx

Input Current (maximum) : 442.8 ADC

Max DC Output Voltage : 55VDC

Output Voltage : 48VDC

Max DC Output Power : 108W

Monitoring unit : Smartpack2

Peak Efficiency : 98.2 %

Operating temperature : -20 - 45 °C

Port : shenzhen

Contact Now

Eltek 36KW 72KW 108KW Flatpack2 DC/DC 380V/54V System with 380V/48V 3000W SHE Module (CDT31242.xxx CDT32442.xxx CDT33642

Product Description
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW

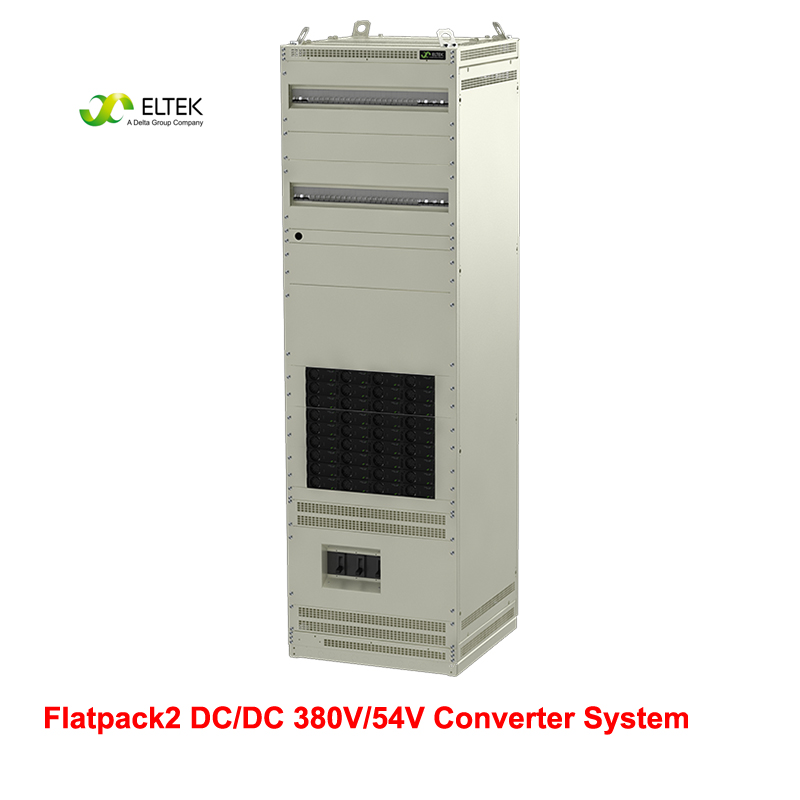

Flatpack2 DC/DC 380V/54V converter system
Integrating state-of-the-art, super high efficiency converter modules with Eltek’s feature rich Smartpack2 monitoring and control unit, the high performance Flatpack2 DC/DC 380V/54V Power System converts the 380 Vdc bus voltage down to a regulated 54 Vdc with a module efficiency of 98.2 %.
Key features:
* Input protection
* Versatility
* Scalability
* Modular – build as your load grows
* Super High Efficiency (SHE)
* Smartpack2 controller
* Hot pluggable
* 50-55 Vdc adjustable output
* Patented SHE technology
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Application
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Specification
Network
SDK
Customized support
Software reengineering
Place of Origin
Guangdong, China
Brand Name
Eltek
Model Number
Flatpack2 DC/DC 380V/54V Converter System
Type
DC/AC Inverters
Output Type
Single
Output Current
2160ADC (maximum)
Output Frequency
45-66hz
Size
600 x 2000 x 600mm
Weight
36kg
Model
Flatpack2 DC/DC 380V/54V System
Warranty
12 months
Part Number
CDT31242.xxx; CDT32442.xxx; CDT33642.xxx
Input Current (maximum)
442.8 ADC
Max DC Output Voltage
55VDC
Output Voltage
48VDC
Max DC Output Power
108W
Monitoring unit
Smartpack2
Peak Efficiency
98.2 %
Operating temperature
-20 - 45 °C
OEM & ODM Service
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Customer Feedback
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Company Profile
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Packing & Delivery
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
Flatpack2 DC/DC 380V/54V Telecom Hybrid System Eltek 36KW 72KW 108KW
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?
Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
