High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE

Product Categories
Shenzhen Xingda Shidai Technology Co., Ltd.
Contact Now

High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE

Place of Origin : Shenzhen, China

Brand Name : ELTEK, Eltek

Model Number : Flatpack S 24V/1000W HE

Packaging Details : Carton and wooden frame

Supply Ability : 1000 Piece/Pieces per Month

Price : $385.00/pieces 1-9 pieces

Output Power : 1000W

Output Type : Multiple

Input Voltage : 85 - 305VAC / 300VDC

Output Voltage : 21 - 29VDC

Output Frequency : 50/60Hz, 50/60Hz

Output Current : 28A

Product Name : Eltek Flatpack S 24v/1000w HE

Cooling : Single fan

Warranty : 1 Year

Efficiency : 92.5%

Input Voltage AC (operating range) : 85 - 305VAC

Input Voltage DC (operating range) : 85 - 300VDC

Max Power : 1000W

Operating temperature : -45 - 185°F

Port : shenzhen

Contact Now

High Efficiency Original 24V DC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE (241122.205)

Product Description
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
Flatpack S 24V/1000W HE
Applications in these markets demand state of the art, reliable and safe DC power systems. Flatpack S delivers an industry leading
power density in its segment, many safety functions, wide operating temperature range and superb reliability in its small 217mm
deep housing.

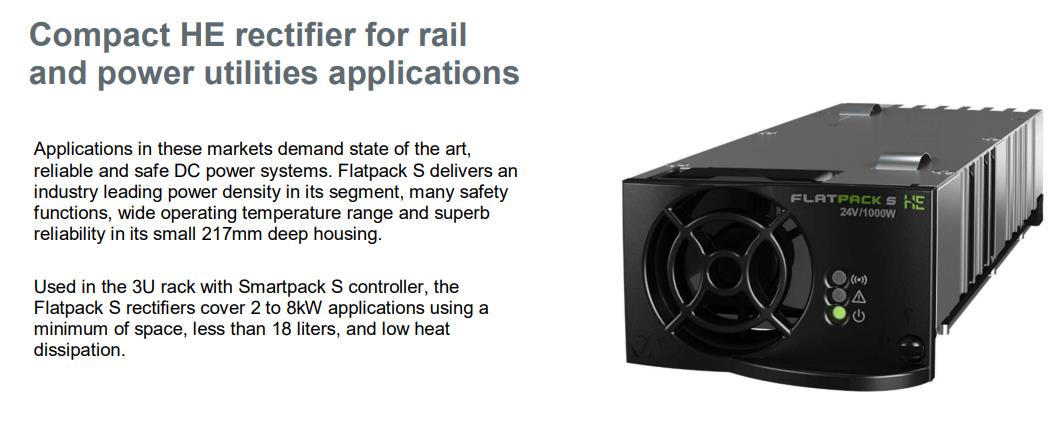

Compact and reliable rectifier for rail and power utilities applications.

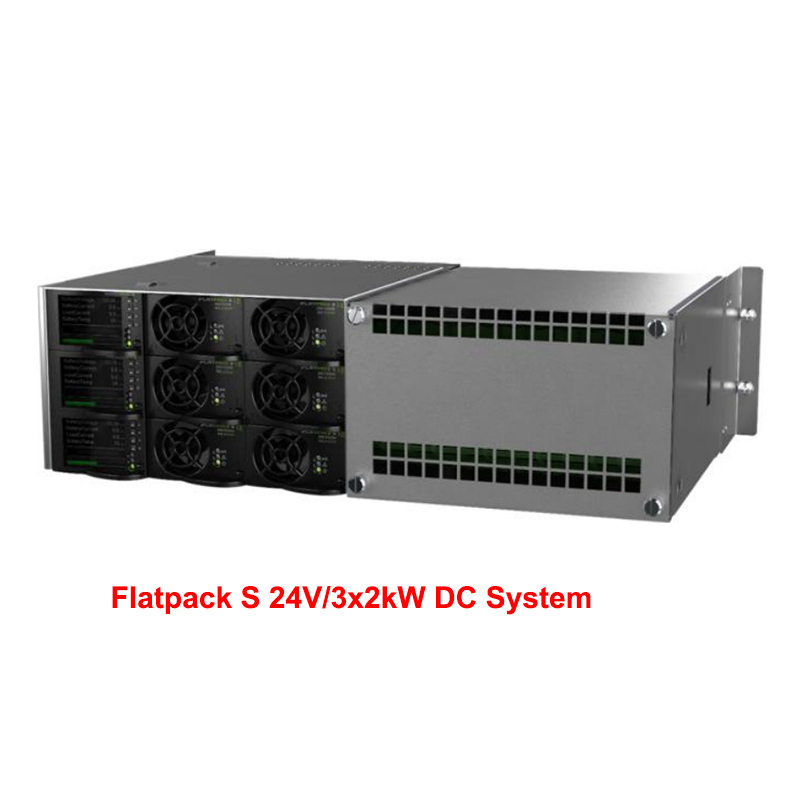

Used in the 3U rack with Smartpack S controller, the Flatpack S rectifiers cover 2 to 8kW applications using a minimum of space,
less than 18 liters, and low heat dissipation.
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
Application
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE

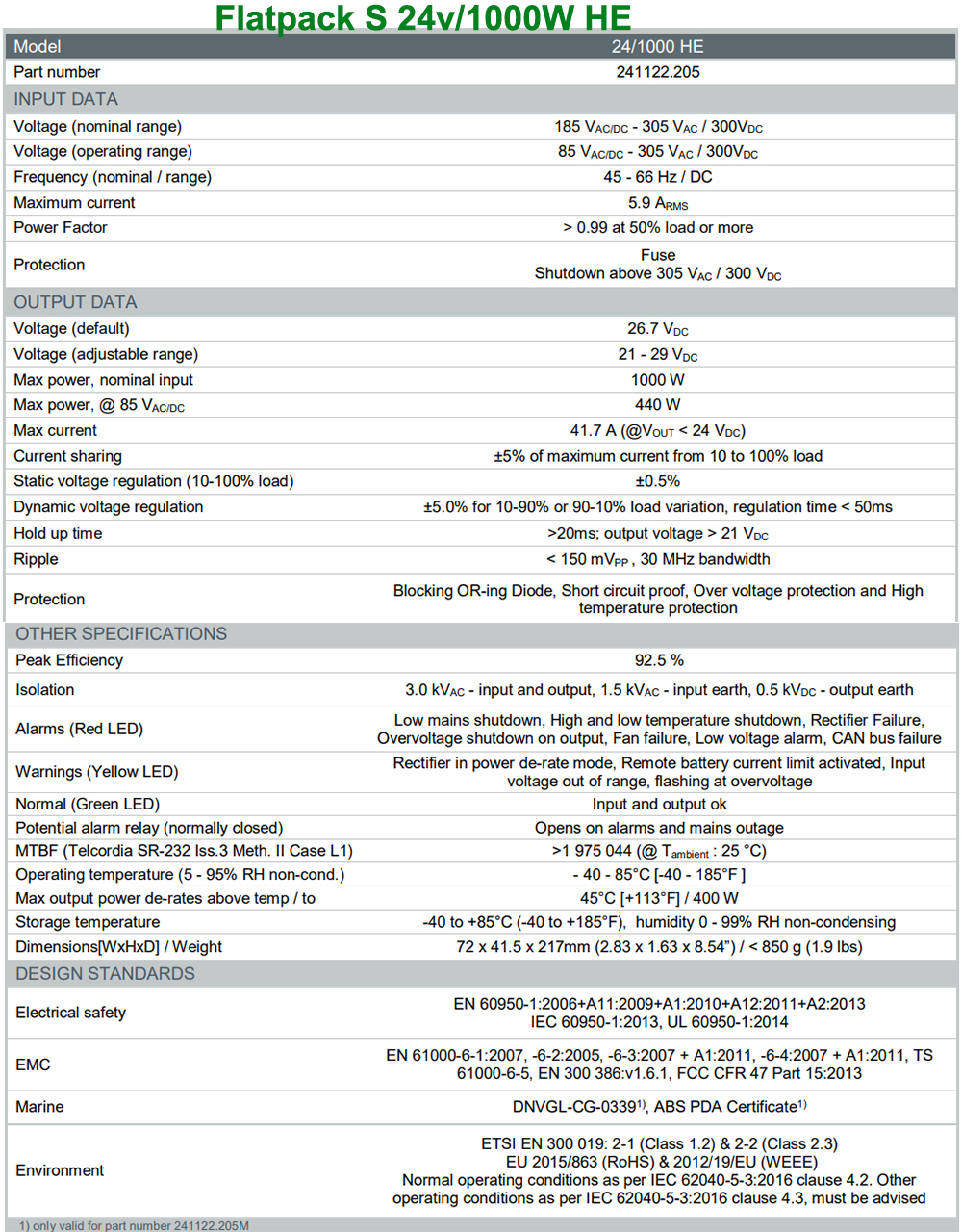

Specification
Place of Origin
Shenzhen, China
Brand Name
ELTEK
Model Number
Flatpack S 24V/1000W HE
Output Power
1000W
Output Type
Multiple
Input Voltage
85 - 305VAC / 300VDC
Output Voltage
21 - 29VDC
Output Frequency
50/60Hz
Output Current
28A
Product Name
Eltek Flatpack S 24v/1000w HE
Cooling
Single fan
Warranty
1 Year
Efficiency
92.5%
Output Frequency
50/60Hz
Input Voltage AC (operating range)
85 - 305VAC
Input Voltage DC (operating range)
85 - 300VDC
Brand Name
Eltek
Max Power
1000W
Operating temperature
-45 - 185°F
OEM & ODM Service
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
Customer Feedback
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
Packing & Delivery
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
High Efficiency 24VDC Power Supply Eltek Rectifier Module Flatpack S 24v/1000w HE
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
