Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom

Product Categories
Shenzhen Xingda Shidai Technology Co., Ltd.
Contact Now

Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom

Network : SDK

Customized support : Software reengineering

Place of Origin : Guangdong, China

Brand Name : ELTEK

Model Number : Micropack DC/DC 120W 10-72V/12V

Type : DC/DC Converters

Output Type : Single

Output Current : 11.5A DC

Output Frequency : 55-65hz

Size : 39.0 x 88.5 x 149mm

Weight : 1.1lbs

Certificate : CE

Application : DC DC Converter for Telecom Railway Infrastructure

Part No. : 241120.400

Warranty : 1 Year

Efficiency : 92.5%

Ingress Protection : IP20

DC Input Voltage : 10.4 - 72VDC

DC Output Voltage (adjustable range) : 10.7 - 18VDC

DC Output Max voltage : 18VDC

DC Output Max Power : 120W

Operating temperature : -40 - 158 °F

Packaging Details : carton

Port : shenzhen

Supply Ability : 100 Piece/Pieces per Week

Price : $599.00/pieces 1-9 pieces

Contact Now

Product Description
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom

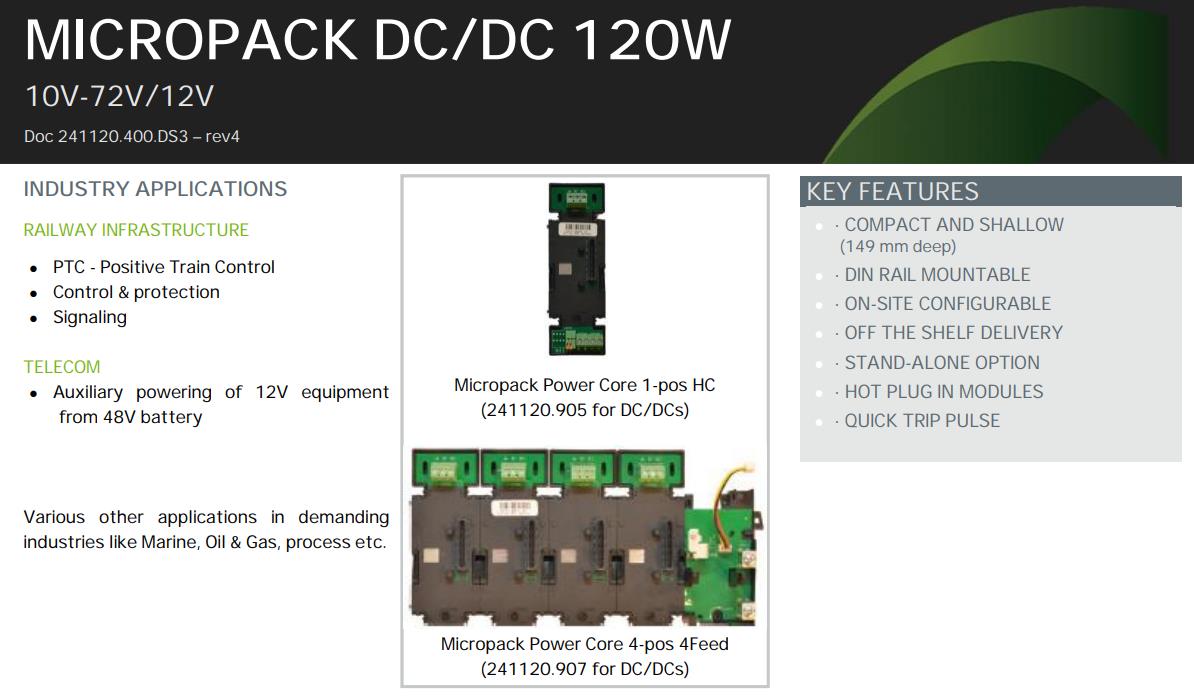

Micropack DC/DC 10-72V 12/120: Great small power
The Micropack DC/DC 120W is a convection cooled converter for 12 Vdc equipment up to 480W. With an input range of 10-72 Vdc, the
Micropack DC/DC 120W can be powered from 12, 24, 48 and 60 volt battery back-up systems.
The Micropack DC/DC 120W is a convection cooled converter for 12 Vdc equipment up to 480W. With an input range of 10-72 Vdc, the
Micropack DC/DC 120W can be powered from 12, 24, 48 and 60 volt battery back-up systems.
Key features:
* Compact and shallow (149 mm deep)
* DINrail mountable
* On-site configurable
* Off the shelf delivery
* Stand-alone option
* Hot plug in modules
* Quick trip pulse
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Application
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Specification
Network
SDK
Customized support
Software reengineering
Place of Origin
Guangdong, China
Brand Name
ELTEK
Model Number
Micropack DC/DC 120W 10-72V/12V
Type
DC/DC Converters
Output Type
Single
Output Current
11.5A DC
Output Frequency
55-65hz
Size
39.0 x 88.5 x 149mm
Weight
1.1lbs
Certificate
CE
Application
DC DC Converter for Telecom Railway Infrastructure
Part No.
241120.400
Warranty
1 Year
Efficiency
92.5%
Ingress Protection
IP20
DC Input Voltage
10.4 - 72VDC
DC Output Voltage (adjustable range)
10.7 - 18VDC
DC Output Max voltage
18VDC
DC Output Max Power
120W
Operating temperature
-40 - 158 °F
Customer Feedback
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
OEM & ODM Service
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.

The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.

We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.

We provide OEM / ODM services according to customers' specific needs.
Our Advantages
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Packing & Delivery
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
Eltek Micropack DC/DC 120W 10-72V/12V Converter P/N 241120.400 12 VDC Converters for Raiway Telecom
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?
Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
