Model Number : NetSure 5100 582137100
Type : Telecom DC Power System
Place of Origin : Guangdong, China
Brand Name : Vertiv / Emerson
Use : telecom access network applications
Application : Telecom Equipment
Warranty : 12 Months
Power Capacity : 18-28.8kW / 1.5-19.2kW
Current Capacity : 40-600A / 50-400A
System Type : Standard system
Input Voltage, Nominal : Single phase: 120VAC, 208VAC to 240VAC
Output Voltage, Nominal : -48VDC, +24VDC
Equipment Dimensions (H x W x D) : Distribution cabinet: 4U x 19" x 15" or 8U x 23" x 15"

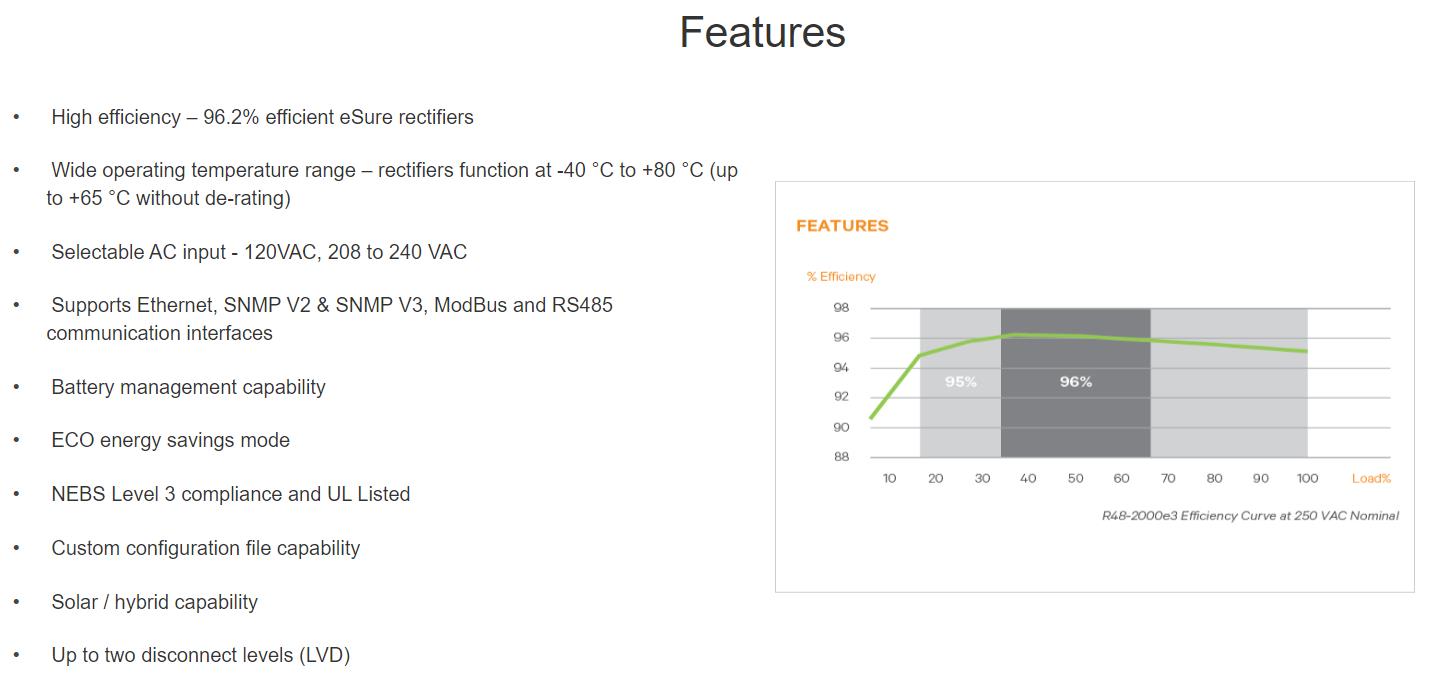

Peak Efficiency : Rectifier: 96.2%, -48V to +24V Converter: 95%, Solar Converter: 96%
Access : Top or rear cabled with front and top access
Packaging Details : Cartons or Wooden Frame
Port : shenzhen
Supply Ability : 2000 Piece/Pieces per Month
Price : $1,899.00/sets 1-19 sets
Model Number | NetSure 5100 582137100 |
Type | Telecom DC Power System |
Place of Origin | Guangdong, China |
Brand Name | Vertiv / Emerson |
Use | telecom access network applications |
Application | Telecom Equipment |
Warranty | 12 Months |
Power Capacity | 18-28.8kW / 1.5-19.2kW |
Current Capacity | 40-600A / 50-400A |
System Type | Standard system |
Input Voltage, Nominal | Single phase: 120VAC, 208VAC to 240VAC |
Output Voltage, Nominal | -48VDC, +24VDC |
Equipment Dimensions (H x W x D) | Distribution cabinet: 4U x 19" x 15" or 8U x 23" x 15" |
Peak Efficiency | Rectifier: 96.2%, -48V to +24V Converter: 95%, Solar Converter: 96% |
Access | Top or rear cabled with front and top access |
![]() |

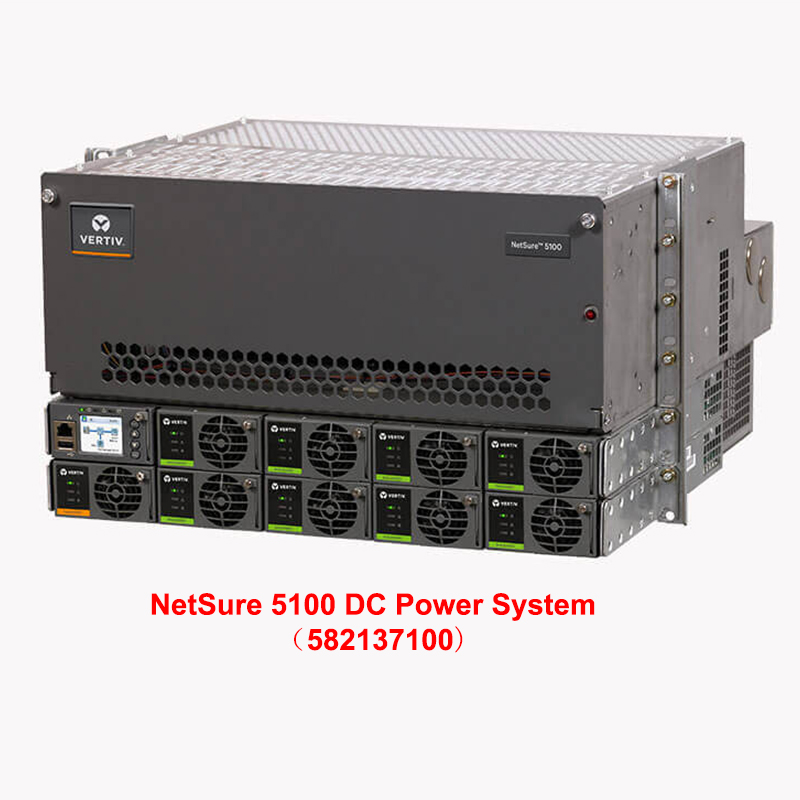

External Distribution 18kW 19" Rack Vertiv/Emerson Netsure 5100 DC Power Supply Rectifier System (582137100) Images |
