Original Emerson 48V DC Power System 19'' Rack Mounted Vertiv Netsure 531 A91 with Rectifier R48-2000e3 M222S/M830B

Product Categories

Outdoor Telecom Cabinet [17]
Telecom Equipment Cabinet [17]
Telecom Battery Cabinet [16]
Network Server Rack Cabinet [9]
Telecom DC Power Systems [80]
Telecom Hybrid System [31]
Rectifier Module [61]
48V DC Rectifier [38]
Ladies Waist Belt [1]
Flatpack2 Integrated Power System [7]
Telecom Lithium Battery [8]
CE+T Power Solutions [2]

Shenzhen Xingda Shidai Technology Co., Ltd.

Contact Now

Original Emerson 48V DC Power System 19'' Rack Mounted Vertiv Netsure 531 A91 with Rectifier R48-2000e3 M222S/M830B

Name: Original Emerson 48V DC Power System 19 Rack Mounted Vertiv Netsure 531 A91 with Rectifier R482000e3 M222SM830B
Brand: Vertiv
Price: 1 USD

China Original Emerson 48V DC Power System 19'' Rack Mounted Vertiv Netsure 531 A91 with Rectifier R48-2000e3 M222S/M830B factory

Place of Origin : Guangdong, China

Brand Name : Vertiv

Model Number : NetSure 531 A91-S1

Output Power : 2kW - 18kW

Output Type : Single

Input Voltage : 200VAC - 250VAC

Output Voltage : 48V

Output Frequency : 50/60HZ

Output Current : 42A - 375A

Application : Telecom Equipment

Product Name : Emerson/Vertiv Netsure DC Power System

Warranty : 12 Months

Peak Efficiency : Rectifier: 96.2%

output capacity : Rectifier: 2000 W (max up to 9 units)

Load Circuit Breakers / Fuses : Circuit Breakers

System Type : Subrack

Equipment Dimensions (H x W x D) : 356mm x 483mm x 310mm

Weight : 40kg(without module)

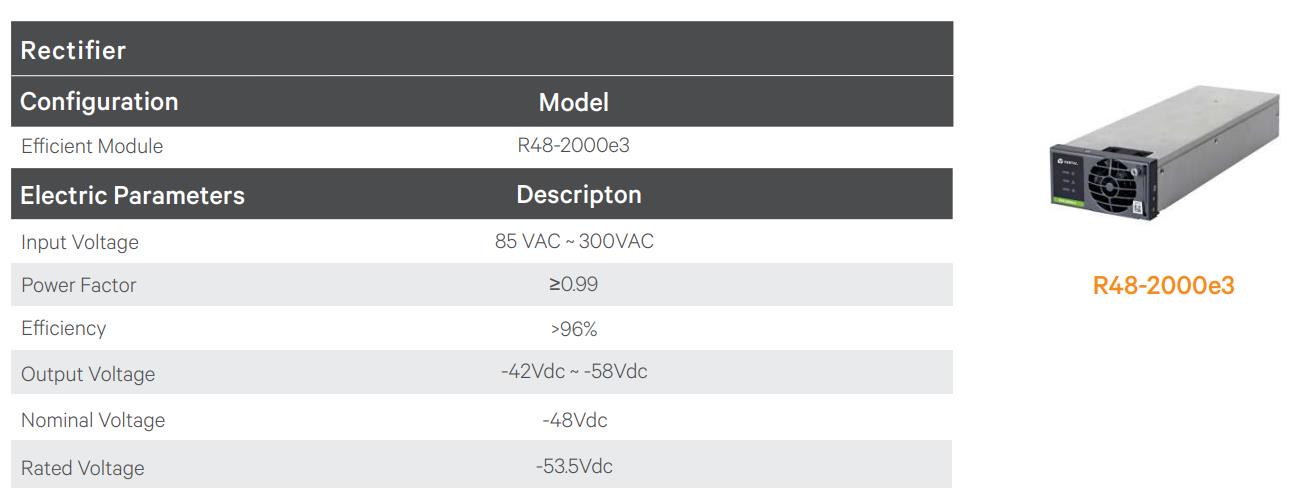

Matching Rectifier Module : R48-2000e3

Packaging Details : Cartons or Wooden Frame

Port : shenzhen

Supply Ability : 1000 Piece/Pieces per Month

Price : $1,299.00/sets 1-99 sets

Contact Now

Product Description

Emerson/Vertiv Netsure 531 A91 Telecom Power Supply System Equip with Rectifier R48-2000E3

The NetSure™ 531 A91 series embedded high frequency switch mode power supply system was designed based on its years of experiences in development and running to meet the need of to deliver reliable and uninterruptible DC power supply for the LTE in-building solutions, FTTx broadband multi-solutions, macro station and outdoor cabinet.

Features:

1. Great savings in installation cost due to its small size and embedded installation.
2. Wide input voltage range (85Vac to 300Vac), strong ability in adapting power grid.
3. Rectifier working temperature range: -40 +80°C (full load output if the range is -40°C +55°C, derating output if exceeding 55°C).
4. Perfect lightning protection at AC side, DC side and signal side.
5. Efficiency of rectifier is above 96%, efficiency of system is above 95%.
6. Battery management, which prolongs the working life of battery.
7. Provide multiple communication ports such as RS232, Ethernet port, dry contacts, etc, for flexible networking to achieve remote
monitoring.

Original Emerson 48V DC Power System 19'' Rack Mounted Vertiv Netsure 531 A91 with Rectifier R48-2000e3 M222S/M830B

Application

Specification

Place of Origin	China
	Guangdong
Brand Name	Vertiv
Model Number	NetSure 531 A91
Output Power	2kW - 18kW
Output Type	Single
Input Voltage	200VAC - 250VAC
Output Voltage	48V
Output Frequency	50/60HZ
Output Current	42A - 375A
Application	Telecom Equipment
Product Name	Emerson/Vertiv Netsure DC Power System
Warranty	12 Months
Peak Efficiency	Rectifier: 96.2%
output capacity	Rectifier: 2000 W (max up to 9 units)
Load Circuit Breakers / Fuses	Circuit Breakers
System Type	Subrack
Equipment Dimensions (H x W x D)	356mm x 483mm x 310mm
Weight	40kg(without module)
Matching Rectifier Module	R48-2000e3

OEM & ODM Service

Customer Feedback

Company Profile

Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.

The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.

We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.

We provide OEM / ODM services according to customers' specific needs.

Our Advantages

Packing & Delivery

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?

Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
