Place of Origin : Guangdong, China
Brand Name : Vertiv / Emerson
Model Number : Netsure 502 Full DC Power System
Output Power : 2kW-8kW
Output Type : Single
Input Voltage : 200VAC-250VAC
Output Voltage : 48V
Output Frequency : 50/60HZ
Output Current : 600A
Application : Telecom Equipment
Product Name : Vertiv Netsure 502
Warranty : 12 Months

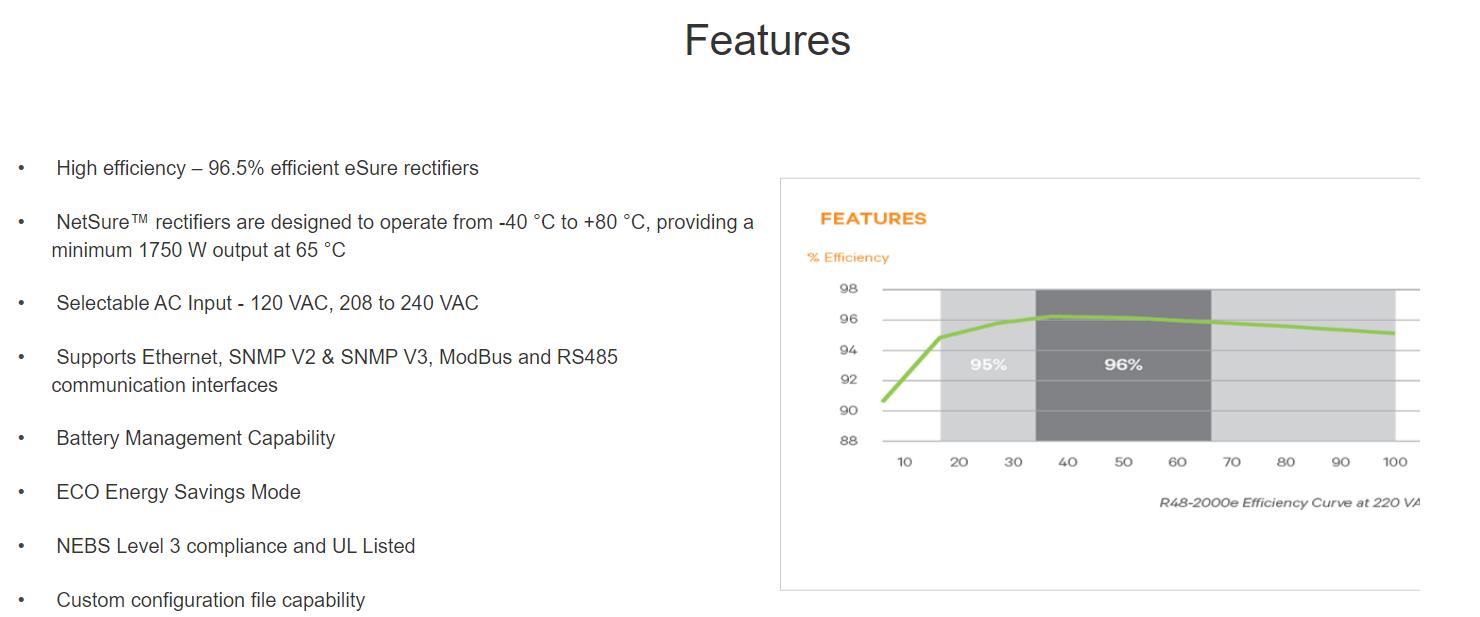

Peak Efficiency : Rectifier: 96.5%

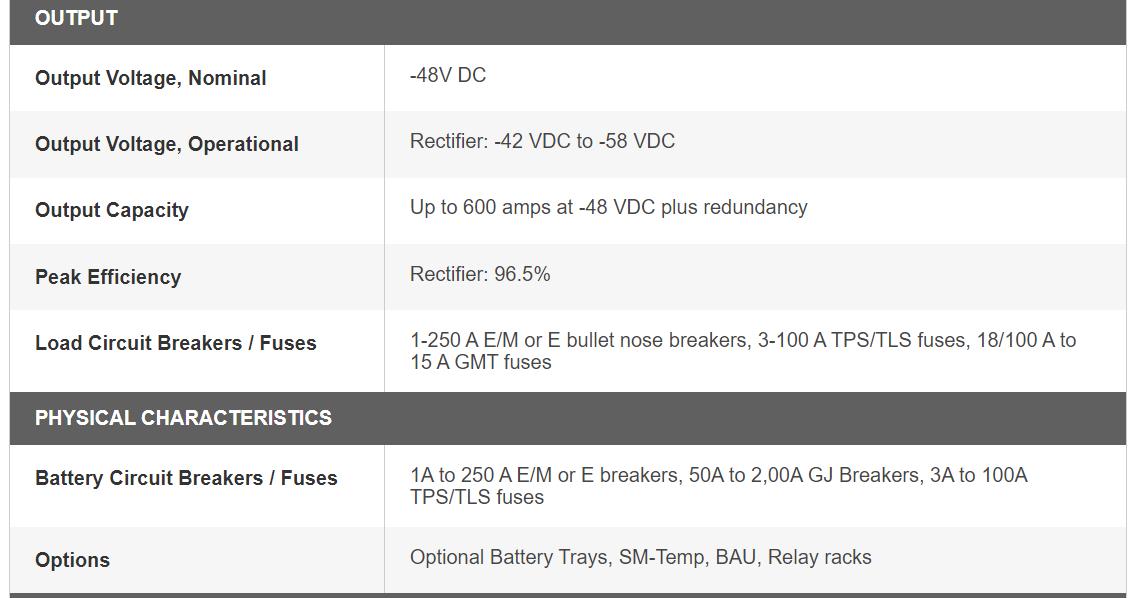

output capacity : Up to 600 amps at -48 VDC plus redundancy
Load Circuit Breakers / Fuses : Circuit Breakers
System Type : subrack
Dimension(W*D*H) : 483 x 310 x 178mm
Weight : ≤25kg (exclude rectifier and controller)
Efficient Rectifier Module : R48-1000 / R48-1000A
Packaging Details : Cartons or Wooden Frame
Port : shenzhen
Supply Ability : 2000 Piece/Pieces per Month
Price : $1,299.00/sets 1-9 sets
Place of Origin | China |
Guangdong | |
Brand Name | Vertiv / Emerson |
Model Number | Netsure 502 Full DC Power System |
Output Power | 2kW-8kW |
Output Type | Single |
Input Voltage | 200VAC-250VAC |
Output Voltage | 48V |
Output Frequency | 50/60HZ |
Output Current | 600A |
Application | Telecom Equipment |
Product Name | Vertiv Netsure 502 |
Warranty | 12 Months |
Peak Efficiency | Rectifier: 96.5% |
output capacity | Up to 600 amps at -48 VDC plus redundancy |
Load Circuit Breakers / Fuses | Circuit Breakers |
System Type | subrack |
Dimension(W*D*H) | 483 x 310 x 178mm |
Weight | ≤25kg (exclude rectifier and controller) |
Efficient Rectifier Module | R48-1000 / R48-1000A |
![]() |

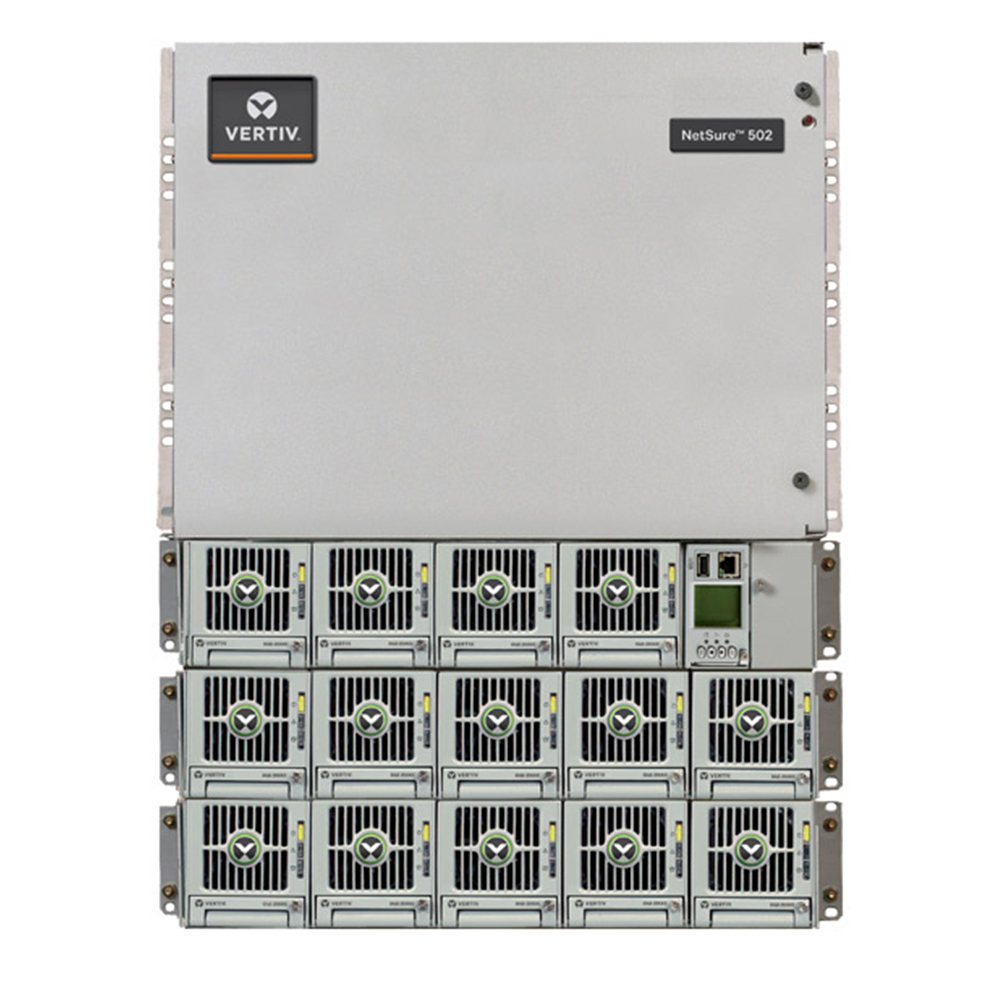

Original Emerson / Vertiv Rectifier System -48V 600A Netsure 502 Full DC Power System Images |
